The Second Version of the Microwave Oven System

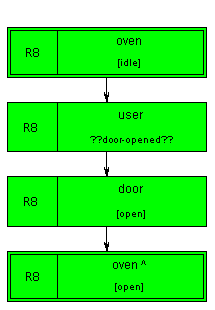

In the Second Version, we have introduced a new requirement R8. R8 and the associated RBT is at below:

R8: When the oven is idle, if the user opens the door, the door will be open, and the oven will be in the status of open.

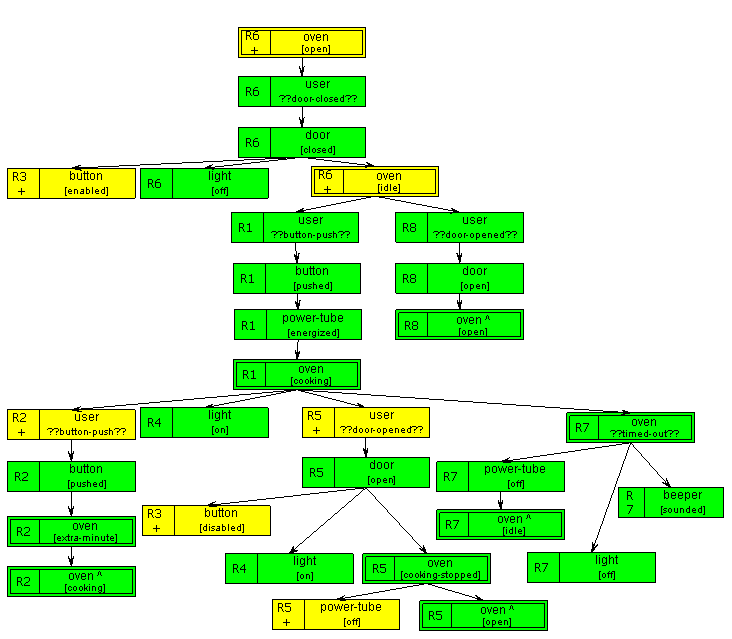

We also removed two behaviors of OVEN:[Cooking-Stop] and OVEN:[Cooking-Finished]. Plus R8, we have the DBT for the second verion of the Microwave Oven case study. Click the image to see the diagram in details.
